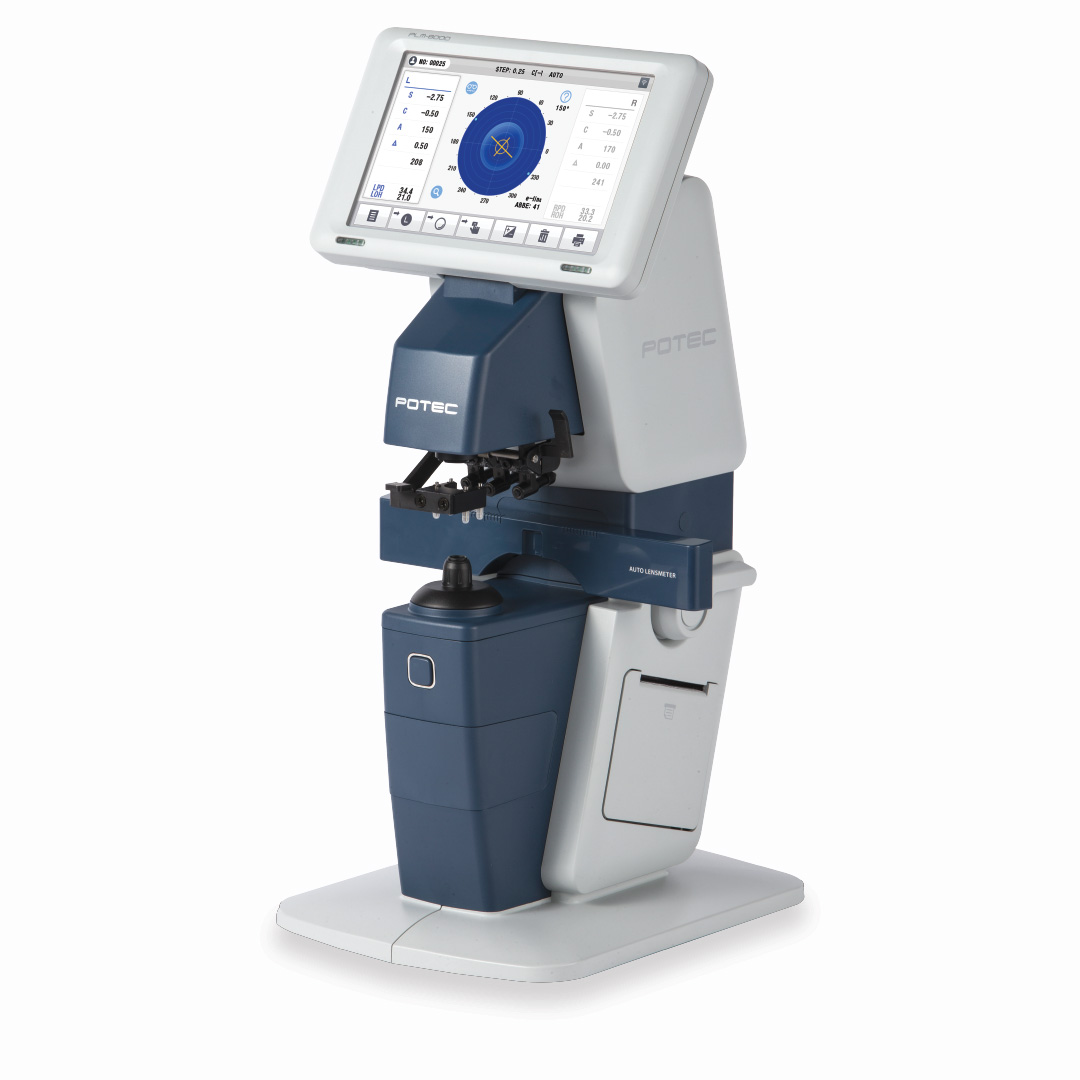

Potec – Auto Lensmeter – PLM-8000

Description

Measurement Method: Shack-Hartmann Wavefront Sensor
Sphere Power (SPH): −25.00 to +25.00 D (0.01 / 0.06 / 0.12 / 0.25 D steps)
Cylinder Power (CYL): 0 to ±10.00 D (0.01 / 0.06 / 0.12 / 0.25 D steps)
Axis (AX): 0° – 180° (1° steps)
ADD Power: 0 to +10.00 D
Prism: 0 to 20Δ
UV / Blue-Light Transmittance Measurement: Supported
Interpupillary Distance (PD): Not supported (available in PLM-8000PD model only)
Measurement Light Source: Green LED (525 nm)
Display: 7-inch TFT-LCD Touch Screen
Printer: Built-in thermal printer with auto-cutter
Interface: RS-232C (Wi-Fi optional)
Power Supply: AC 100–240 V, 50 / 60 Hz
Power Consumption: 15 – 53 VA
Dimensions: Approx. 198 × 245 × 420 mm
Weight: Approx. 5 kg
Key Features
High-accuracy wavefront measurement
Automatic lens detection for fast operation
UV and blue light transmittance measurement
Compact design with integrated printer
Touch-screen interface for easy operation
