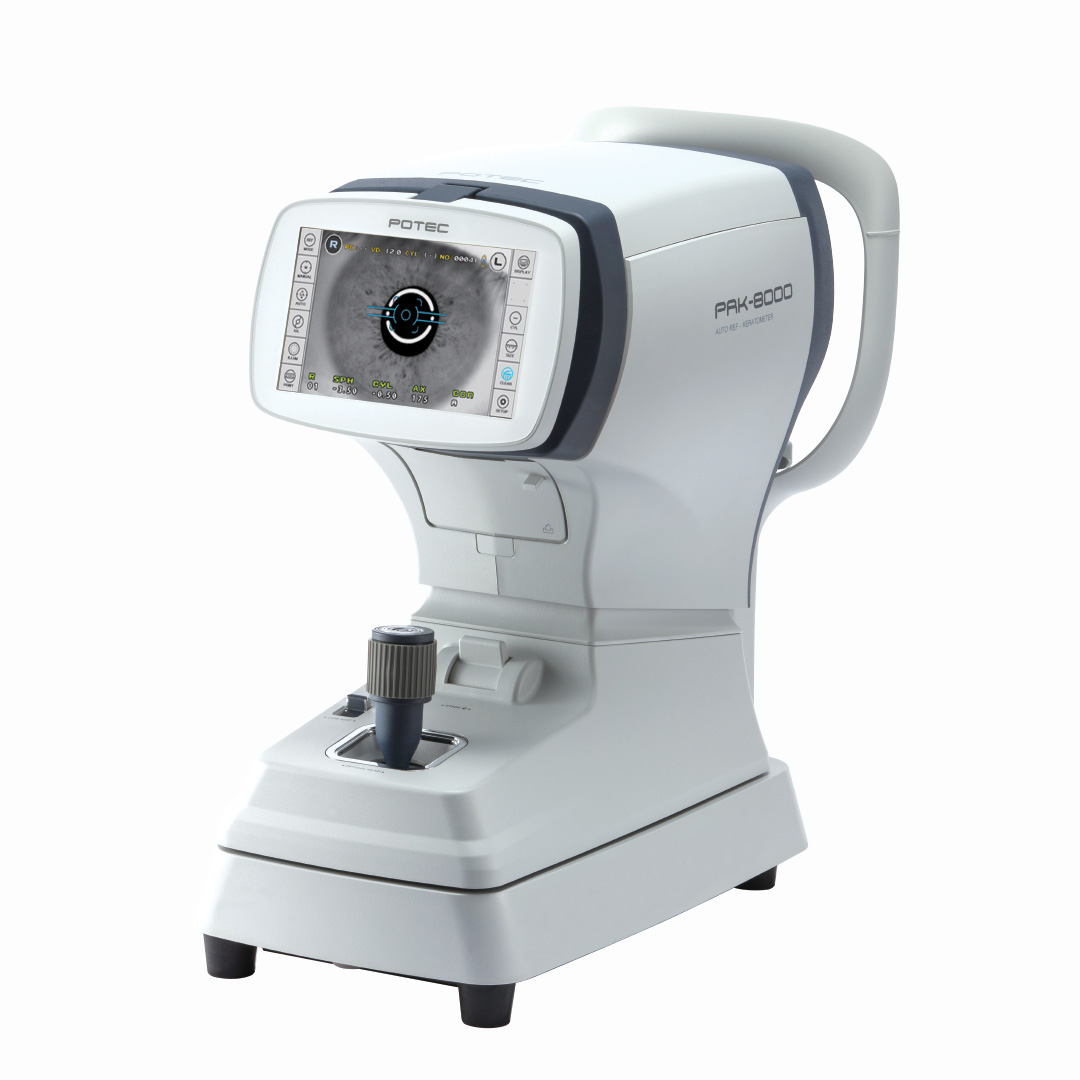

Potec – Auto Ref-Keratometer – PRK-8000

Description

Measurement Modes: K/R Mode (Continuous Keratometry & Refractometry), REF Mode, KER Mode, CLBC Mode, Peripheral Keratometry
Vertex Distance: 0.0 / 12.0 / 13.5 / 15.0 mm
Sphere Range: −30.00 D to +25.00 D (0.12 / 0.25 D increment)
Cylinder Range: 0.00 to ±10.00 D (0.12 / 0.25 D increment)
Axis: 1° – 180° (1° increment)
Pupil Distance (PD): 10 – 88 mm
Minimum Pupil Diameter: Ø 2.0 mm
Corneal Curvature Radius: 5.0 – 13.0 mm
Corneal Power: 25.96 – 67.50 D
Corneal Astigmatism: 0.00 – 15.00 D
Corneal Diameter: 2.0 – 14.0 mm
Memory: 10 measured values per eye
Display: 7-inch TFT LCD Touch Screen (800 × 480)
Printer: Built-in thermal printer with auto-cutter
Power Supply: AC 100–240 V, 50 / 60 Hz
Operating Temperature: +10°C to +40°C
Humidity: 30% – 85% RH
Dimensions: Approx. 260 × 500 × 450 mm
Weight: Approx. 20 kg
Key Features
Wide measurement range for refraction and keratometry
Semi-auto pupil tracking system
Peripheral keratometry and contact lens base curve measurement
Tilting and swivel LCD monitor
Continuous fast measurement for advanced refractive cases
