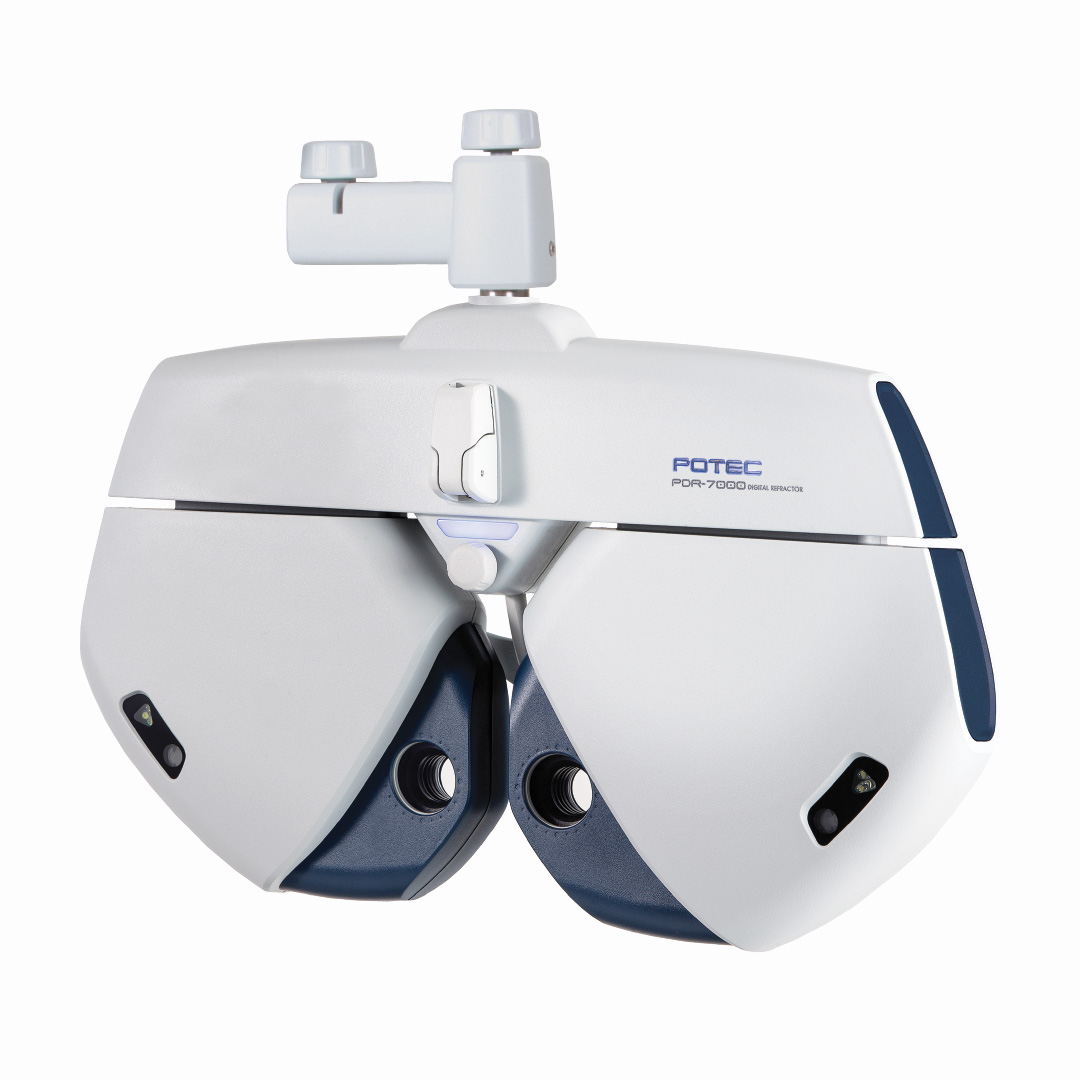

Potec – Digital Refractor – PDR-7000

Description

Specifications
Sphere Power (SPH): −29.00 to +26.75 D (general), −19.00 to +16.75 D (cross cylinder or prism)
Sphere Increment: 0.12 / 0.25 / 0.50 / 1.00 D
Cylinder Power (CYL): 0 to ±8.75 D
Cylinder Increment: 0.25 / 0.50 / 1.00 / 2.00 / 3.00 D
Axis (AX): 0° – 180°
Axis Increment: 1° / 5° / 15°
Interpupillary Distance (PD): 48 – 80 mm
Measurement Distance: 35 – 70 cm
PD Increment: 0.5 / 1 mm
Prism Degree: 0Δ – 20Δ
Prism Increment: 0.1Δ / 0.5Δ / 2Δ
Prism Angle: 0° – 360°
Prism Angle Increment: 1° / 5°
Cross Cylinder: Automatic ±0.25 D, ±0.50 D
Subsidiary Lenses: PD cover, Pin hole (2 mm), Polarized filter (45° / 135°), Maddox rod (Right: horizontal / Left: vertical), Red-green filter, Separation prism (Right: 6Δ BU / Left: 10Δ BU)
Refractor Dimensions: 323–389 (W) × 245 (D) × 59 (H) mm
Refractor Weight: 3.7 kg
Controller Dimensions: 260 (W) × 230 (D) × 58 (H) mm
Controller Weight: 3.1 kg (printer included)
Junction Box Dimensions: 210 (W) × 190 (D) × 70 (H) mm
Junction Box Weight: 2.1 kg (printer included)
Key Features
Ergonomic design
Forehead pedestal sensor
Automatic cross cylinder function
Supports comprehensive refraction tests
Potec – Smart Chart System – PLC-8000
Specifications
Test Distance: 1.0 – 6.0 m (0.1 m step)
Chart Types: Landolt Ring, Alphabet, Numerals, Snellen, Pictures, Mask (Vertical / Horizontal / Single Letter), Red-Green Chart, Polaroid Chart (PLC-8000pola), Color Blindness, Amsler Chart
Programmable Charts: Up to 40 charts
Display: 23-inch Full-HD LCD (1920 × 1080)
Display (Polaroid Version): 24-inch Full-HD LCD (1920 × 1080)
Operating System: Android 4.4.2
Storage: Micro SD Card (8 GB)
Interfaces: USB 2.0, RS-232
Communication: Wired (RS-232), Wireless (Bluetooth)
Speaker: 1.5 W
Video Formats: AVI, MPEG, MP4, MKV
Rated Voltage: AC 100–240 V, 50 / 60 Hz
Power Consumption:
PLC-8000: 45 – 55 VA
PLC-8000pola: 35 – 45 VA
Dimensions:
Body: 583 (W) × 55 (D) × 423 (H) mm
Remote Controller: 64 (W) × 196 (D) × 20 (H) mm
Weight:
Body: Approx. 6 kg
Wall Mount Bracket: 370 g
Remote Controller: 160 g (battery included)
Operating Environment:
Temperature: +10°C to +40°C
Humidity: 30% – 85% RH
Pressure: 700 – 1060 hPa
Storage / Transport Environment:
Temperature: −10°C to +55°C
Humidity: 10% – 90% RH
Pressure: 600 hPa
Key Features
Smart chart system with Full-HD LCD
Wide range of visual acuity tests (0.05 – 2.0)
Adjustable test distance with 0.1 m steps
Supports RS-232 and Bluetooth communication
Compatible with Potec digital refractors
Multiple astigmatism, ETDRS, color blindness and Amsler charts
User-programmable test sequences
