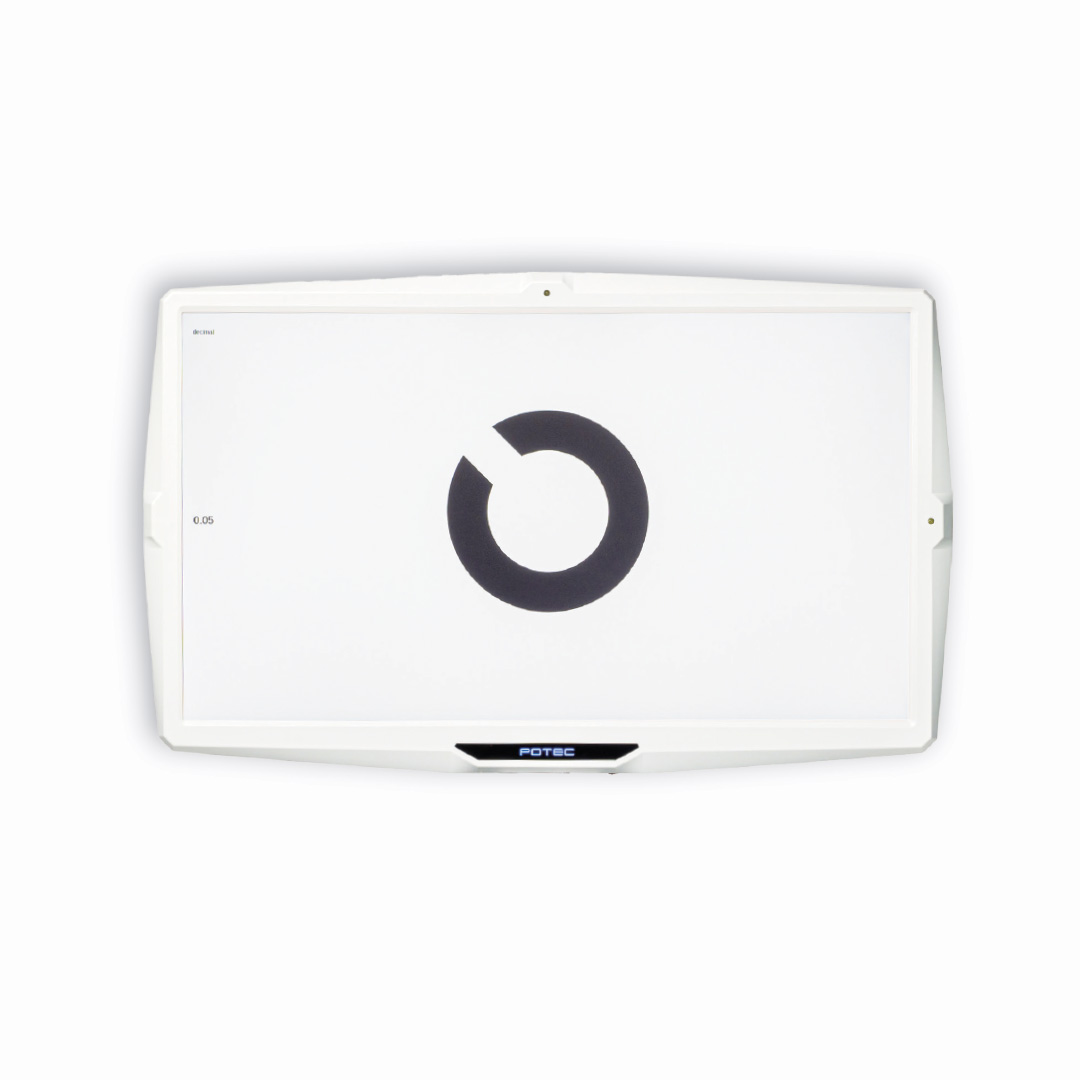

Potec – LCD Acuity Chart – PLC-9000

Description

Specifications
Distance of Projection: 1.0 – 8.0 m (0.25 m step adjustment)
Charts: Landolt Ring, Alphabet, Numerals, Snellen, Children Charts, Color Blindness Charts, Mask (Horizontal / Vertical / Single), Special Chart (Polarization – PLC-9000pola)
Astigmatism Charts: Fan & Block charts (multiple types)
Visual Acuity Range: 0.05 – 2.0 (16 steps)
Display: 23.8-inch Full-HD LCD
Brightness: 350 cd/m²
Programs: 2 programs, up to 40 charts each
Interface: USB (USB 3.0), RS-232C
Communication: Wired (RS-232C), Wireless (Wi-Fi)
Memory: eMMC 8 GB
Power Supply: DC 12 V
Power Consumption: 25 W
Dimensions (Body): 585 (W) × 54 (D) × 363 (H) mm
Dimensions (Remote Controller): 64 (W) × 196 (D) × 20 (H) mm
Weight (Body): Approx. 4.9 kg
Weight (Wall Mount Bracket): 370 g
Weight (Remote Controller): 160 g (battery included)
Operating Environment:
Temperature: +10°C to +40°C
Humidity: 30% – 90% RH
Pressure: 800 – 1060 hPa
Storage Environment:
Temperature: −10°C to +55°C
Humidity: 10% – 95% RH
Pressure: 700 – 1060 hPa
Transport Environment:
Temperature: −40°C to +70°C
Humidity: 10% – 95% RH
Pressure: 500 – 1060 hPa
Key Features
Universal digital eye chart with easy personalization
Wide range of visual acuity and astigmatism test charts
Maddox rod test with integrated LED light source
Contrast sensitivity test (13 steps)
Amsler grid chart for macular degeneration test
Easy software update via USB
Seamless integration with Potec PDR-7000 digital refractor
