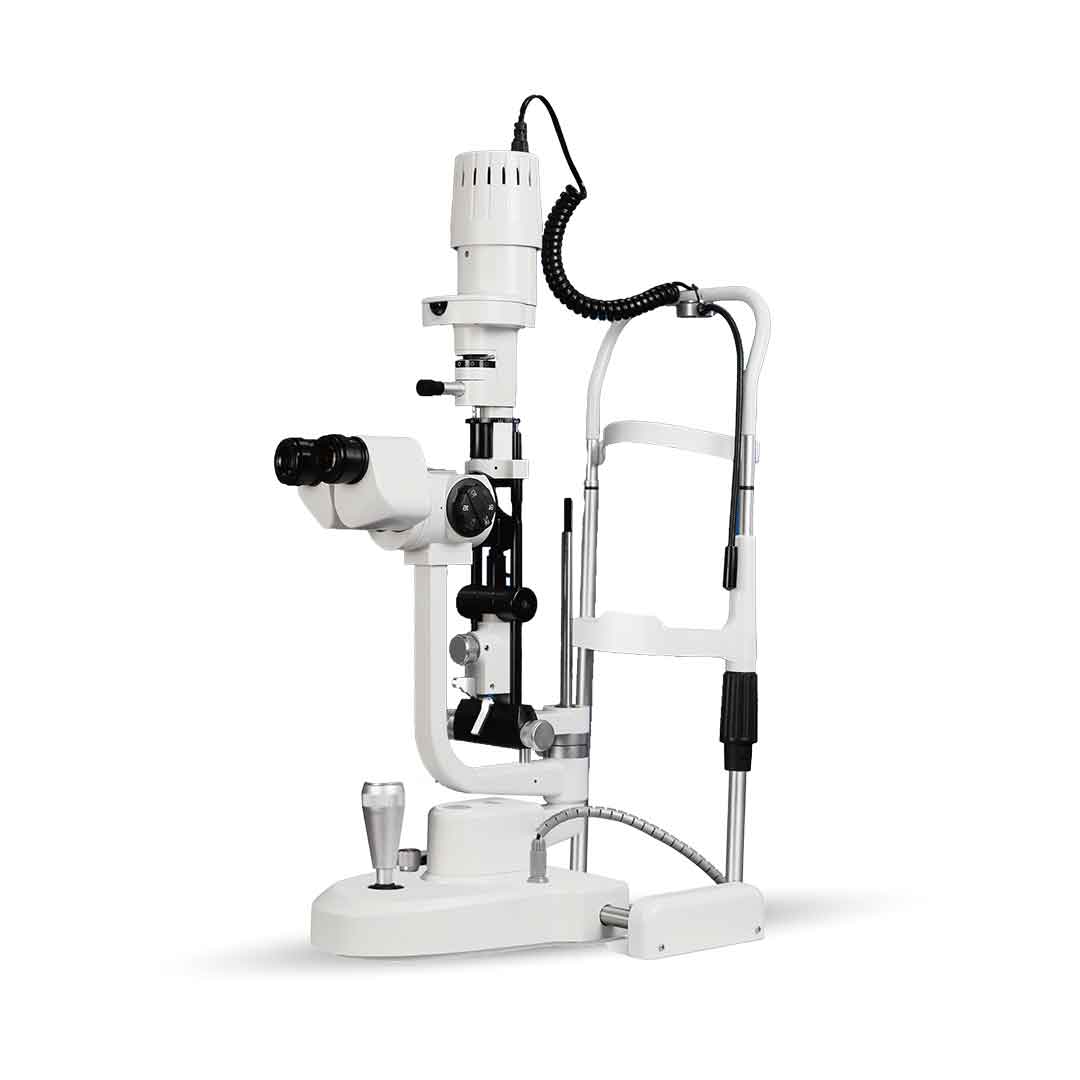

Slit Lamp Microscope – ML-350 – Mocular

Description

Slit System
• Slit Width: 0 – 14 mm (continuously adjustable)
• Slit Height: 1 – 14 mm (continuously adjustable)
• Illumination Method: Upper light source
• Fixation Light: Red LED
Aperture Sizes
• Ø0.2 mm, Ø1 mm, Ø3 mm, Ø5 mm
• Ø10 mm, Ø14 mm, Ø1–14 mm
Microscope
• Microscope Type: Galilean parallel angle
• Total Magnification: 6×, 10×, 16×, 25×, 40×
• Eyepiece Magnification: 12.5×
• Eyepiece Angle: 13°
Field of View
• 40×: 5.0 mm
• 25×: 8.5 mm
• 16×: 13.5 mm
• 10×: 22 mm
• 6×: 34.7 mm
Adjustment
• PD Adjustment: 54 – 87 mm
• Diopter Adjustment: ±7 D
Illumination
• Light Source: LED
• Features: Low working temperature, long service life, environmental protection
Key Features
• Classic slit lamp microscope for routine ophthalmic examinations
• Drum zoom system for smooth magnification changes
• Modular and ergonomic design for daily clinical use
• Wide slit width and height adjustment for anterior segment observation
• Stable illumination with adjustable brightness for patient comfort
